An experienced DBA at a mid-sized tech company encountered a severe system performance issue involving SQL Server parallelism. Leveraging the real-time visibility provided by AimBetter, the DBA was able to quickly pinpoint a critical bottleneck affecting query performance and overall system efficiency.

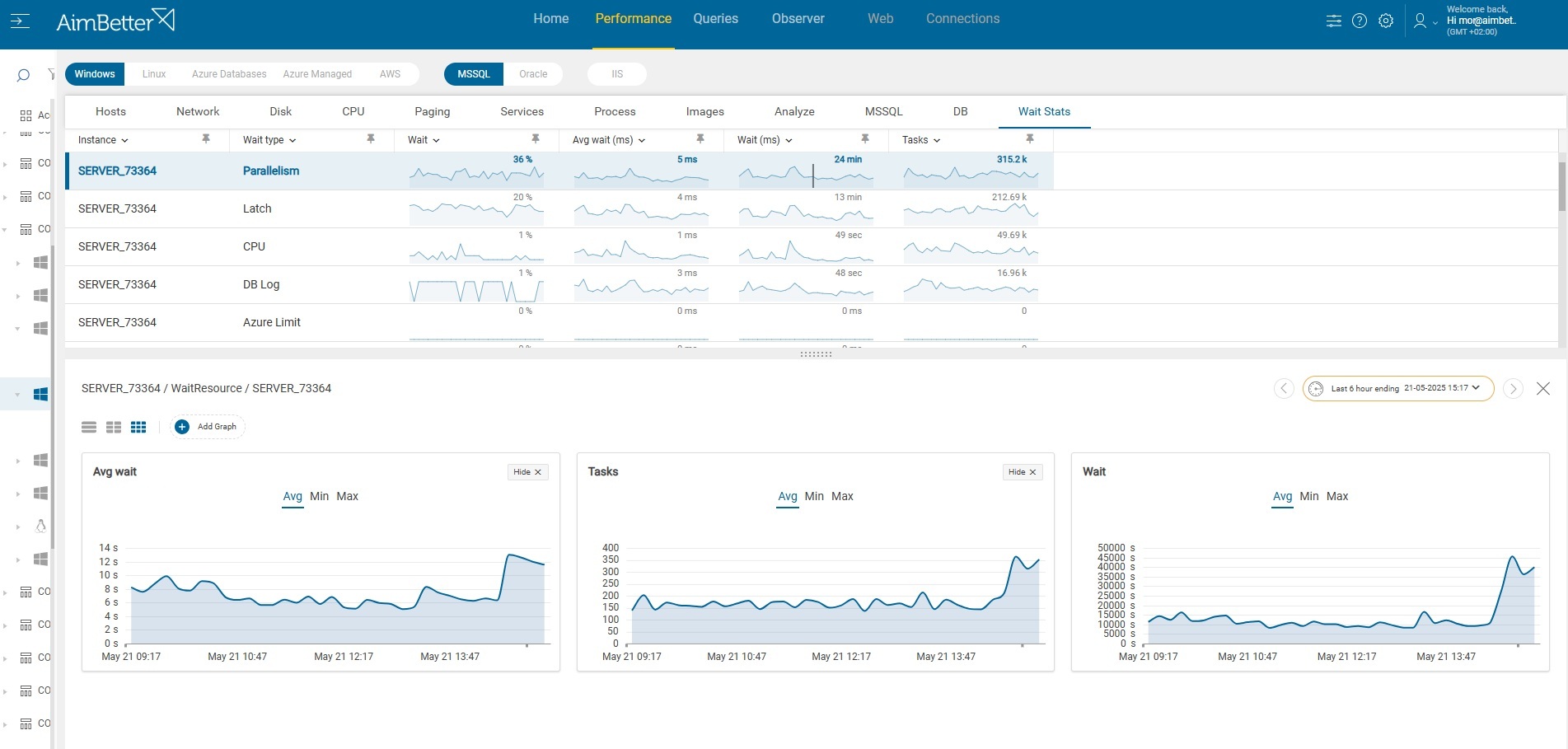

Using AimBetter’s Wait Stats monitoring, the DBA observed an abnormally high wait time attributed to parallelism, specifically to the wait types CXPACKET
and CXCONSUMER
. The statistics revealed that certain processes were stalling for up to 45 minutes. Further investigation showed that when four CPU cores began a parallel operation, three would complete relatively quickly but were forced to wait an excessive amount of time—up to 45 minutes—for the slowest core to finish its task.
This imbalance drastically slowed down the affected queries and impacted overall performance during peak workloads.
The AimBetter Insight
The DBA used AimBetter’s intuitive dashboard to:
-
Visualize the wait types in real-time
-
Identify that the wait times were dominated by parallelism-related processes
-
Validate that the issue was persistent and not a one-time anomaly
The clarity provided by AimBetter enabled the DBA to confidently drill down and target the issue without trial-and-error or deep-diving through system logs manually.
Based on this insight, the DBA:
-
Adjusted the
Max Degree of Parallelism (MaxDOP)
setting from 6 to 4 -
Left the
Cost Threshold for Parallelism
untouched, focusing only on tuning the processor core usage
This subtle but informed change immediately redistributed the workload more evenly across cores and reduced the overhead of excessive parallelism.
The Result
Following the change:
-
Wait times dropped dramatically, from 45 minutes to a maximum of one minute
-
Most queries completed within a few seconds
-
System performance stabilized, improving responsiveness across applications that depended on the SQL Server
AimBetter continued to monitor the system post-change, confirming the improvement and validating that no new bottlenecks had been introduced.
Thanks to the insight delivered by AimBetter’s intelligent monitoring platform, the DBA quickly identified and resolved a hidden performance issue that could have cost the company significant downtime and user frustration. This case exemplifies how proactive, data-driven tuning—when guided by the right tools—can result in major performance gains with minimal configuration changes.
